Model TR-1-NK-HE hydraulic weighing system  NEW "Load-Monitor" option

Printable brochure
Full feature digital scale system for lowest cost. Made in U.S.A. at our San Diego plant.  Complete system for any hydraulic lifting equipment.  The unit has adjustable parameters for automatic weight capture and capture and add for front-end-loaders. Display modes for display of Current Load or Total Weight. Printer data output for recording each load and total.

  Part # & Manual
 TR-1-NK-HE 54001  Digital Scale Indicator for forklift and loader

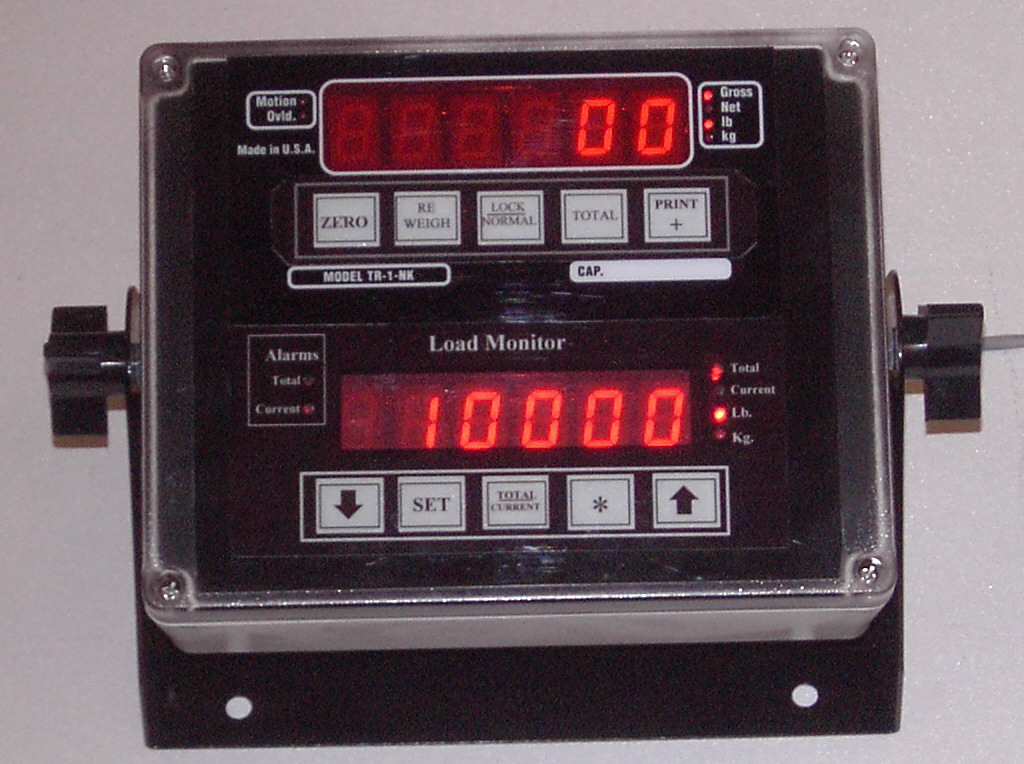

Load-Monitor 54100 Additional display for aid in loading
Power   12 volt DC (other voltages available)
Enclosure   Water resistant sealed polycarbonate
with stainless steel tilt bracket for wall or desk
Display   High brightness LED - 6digits .56" tall
Pressure sensor   5000 PSI
Temperature   0-40c operating range
Resolution   1 part in 60,000 internal
Accuracy   +-1% of forklift or loaders capacity
Output   Serial printer data or continuous computer data
Option 54002 24 volt DC-DC converter for electric forklift
Option 54003 36 volt DC-DC converter for electric forklift
Option 54004 48 volt DC-DC converter for electric forklift
Option 54005 Thermal paper printer
